LINKPRO BATTERY MONITOR (PRIMARY & AUX BANK)

LINKPRO BATTERY MONITOR  (PRIMARY & AUX BANK)

Product description:

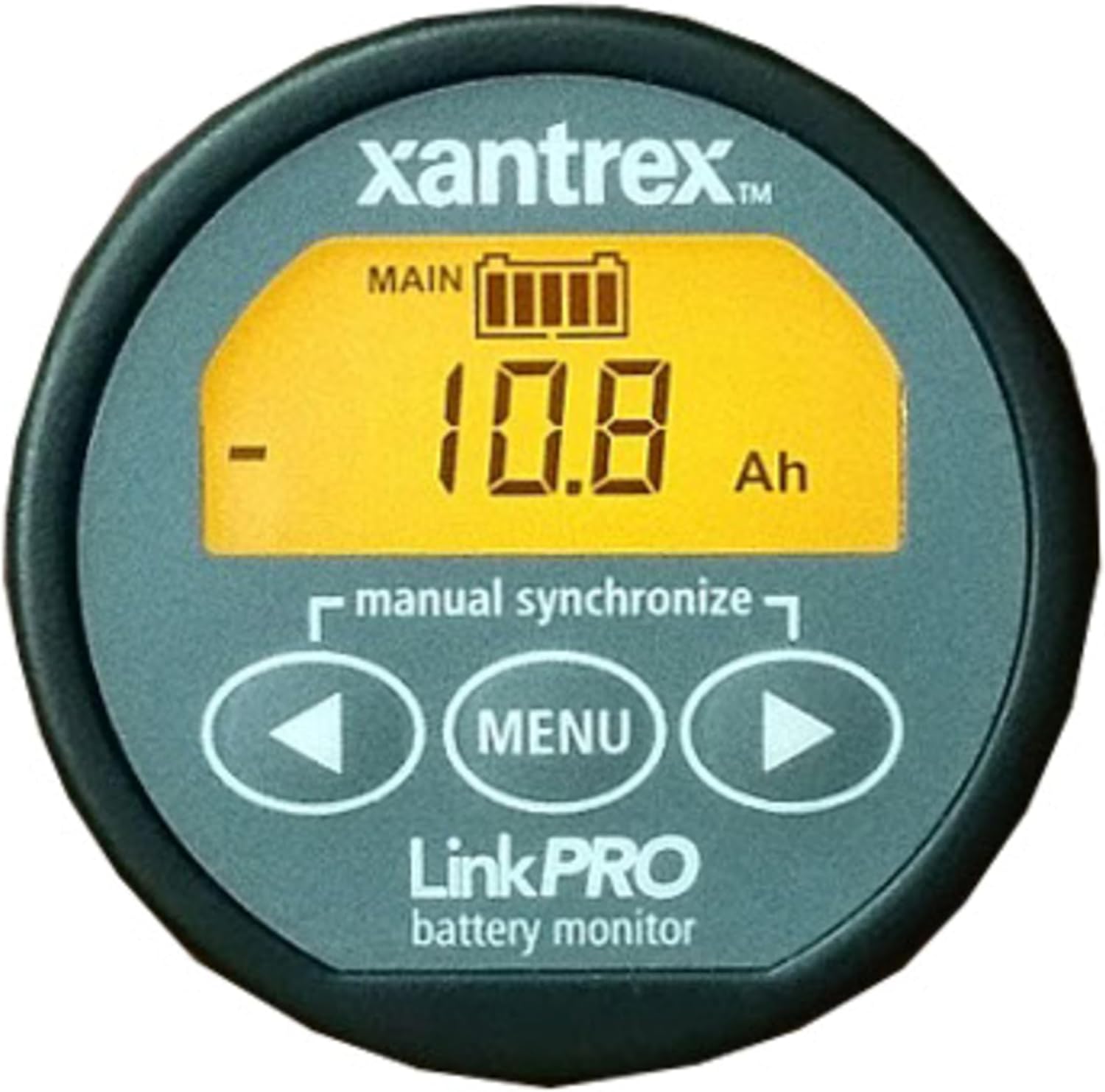

LinkPRO is an advanced battery monitor designed for use in mobile and marine applications, such as yachts, recreational vehicles, off-grid installations and commercial vehicles. The monitor allows you to accurately track the status of your battery bank, displaying parameters such as voltage, charge/discharge current, ampere-hours used, and estimated runtime.

---

Key features:

- Measures currents up to 10,000 A using an appropriate shunt.
- Backlit LCD display — easy to read both day and night.
- Ability to monitor two battery banks (main + auxiliary input).
- Built-in programmable alarms — e.g. when the voltage drops below a set threshold or the current exceeds a set value.
- Communication connector/expansion port — facilitates integration with other devices and systems.
- A 500 A shunt is included.

---

Technical data:

- Supply voltage range: 9–35 V DC.
- Measurement voltage range on the main bank: 0–35 V DC.

- Measurement current range: from -9999 A to +9999 A (depending on the set shunt).
- Voltage reading accuracy: ±0.01 V (0–35 V). [6]
- Front panel dimensions: diameter ~64 mm (2.54″).
- Operating temperature range: -20 °C to +50 °C.

Applications:

- Monitoring battery banks in yachts/motorboats.
- Recreational vehicles (motorhomes, caravans).
- Energy storage and emergency power supply systems.
- Commercial/industrial vehicles that have a 12 V or 24 V installation and want to have a ‘fuel gauge’ for their batteries.
