HF Pro 12 V 2000 W Inverter Charger

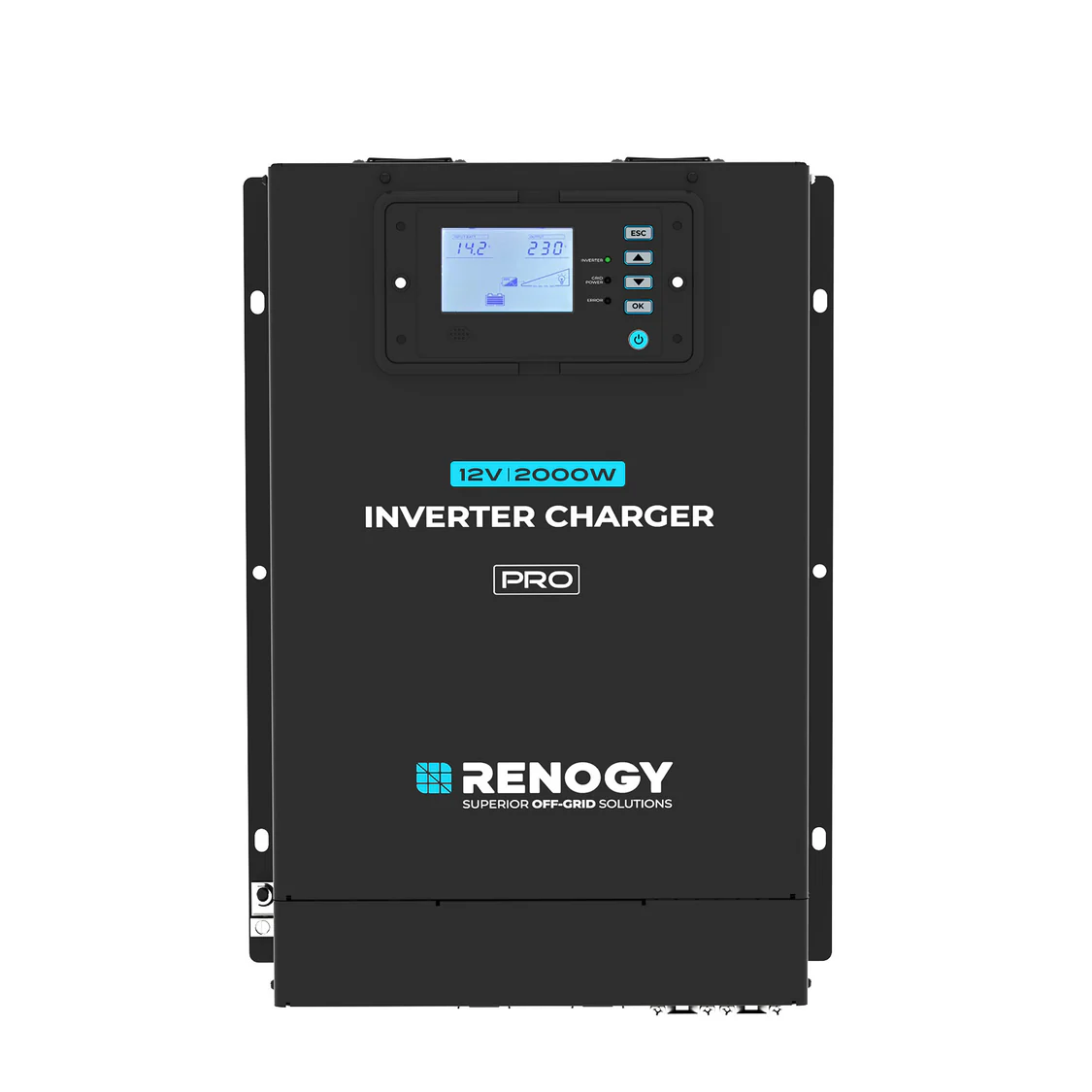

Renogy Pro 12 V 2000 W HF Inverter Charger

The Renogy Pro 12 V 2000 W HF inverter charger delivers high performance and a reliable power supply for off-grid and mobile applications. With an inverter efficiency exceeding 91% and standby power consumption below 10 W, it extends battery life while minimizing energy loss. Its lightweight and compact design (8.1 kg) allows for easy installation in tight spaces, such as RVs and small cabins.

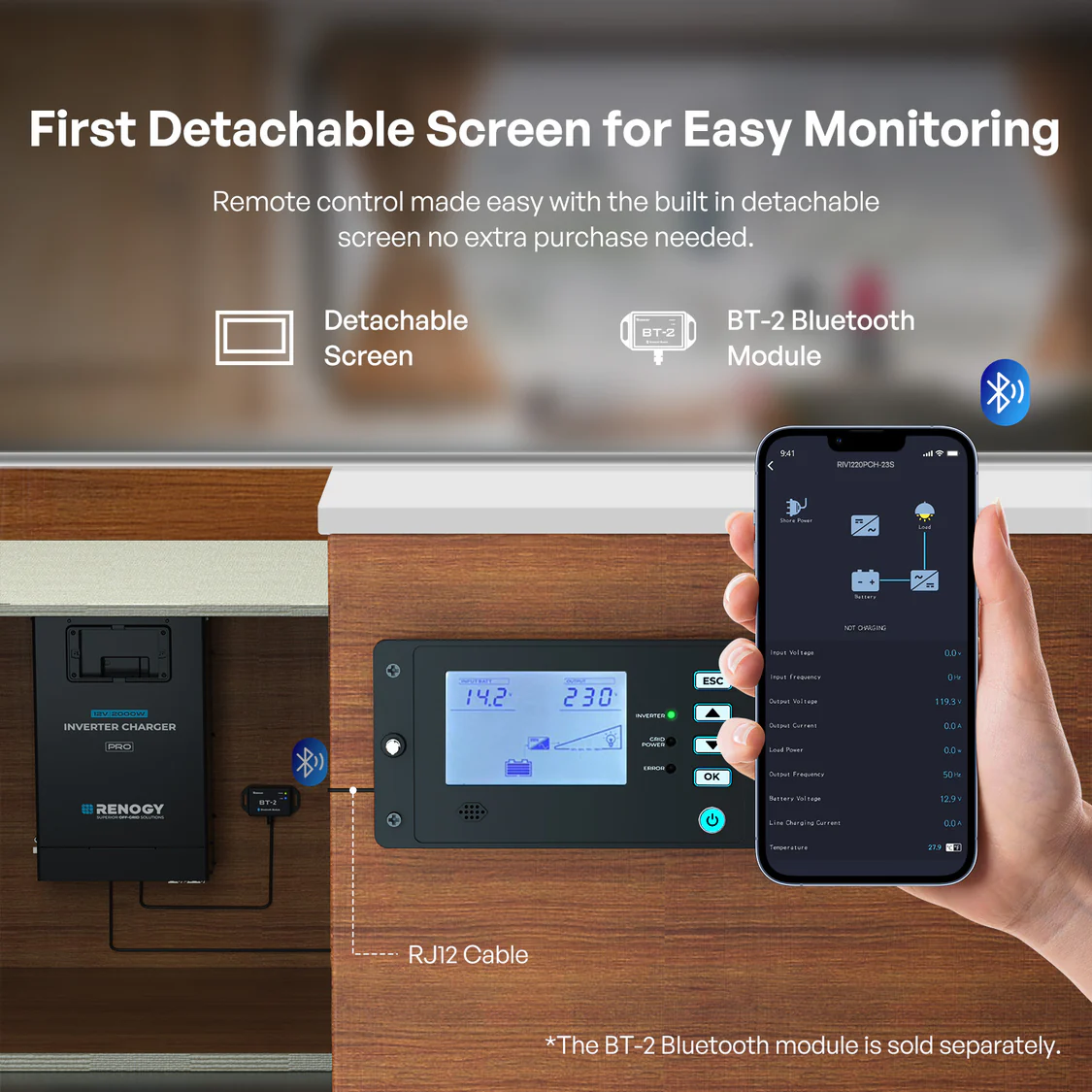

The device features an innovative, detachable control panel that simplifies system monitoring, and when paired with the optional BT-2 Bluetooth module (sold separately), it enables remote access via the Renogy app. The built-in RCD protection enhances user safety without the need for additional devices.
Compatible with a wide range of lithium-acid-lead batteries and supporting AC input, it offers a flexible and complete off-grid power solution. The inverter-charger ensures seamless switching between AC input and battery power within 20 milliseconds, guaranteeing uninterrupted operation of connected loads.

 Renogy Pro 12 V 2000 W Inverter Charger
No bulk, just pure performance.

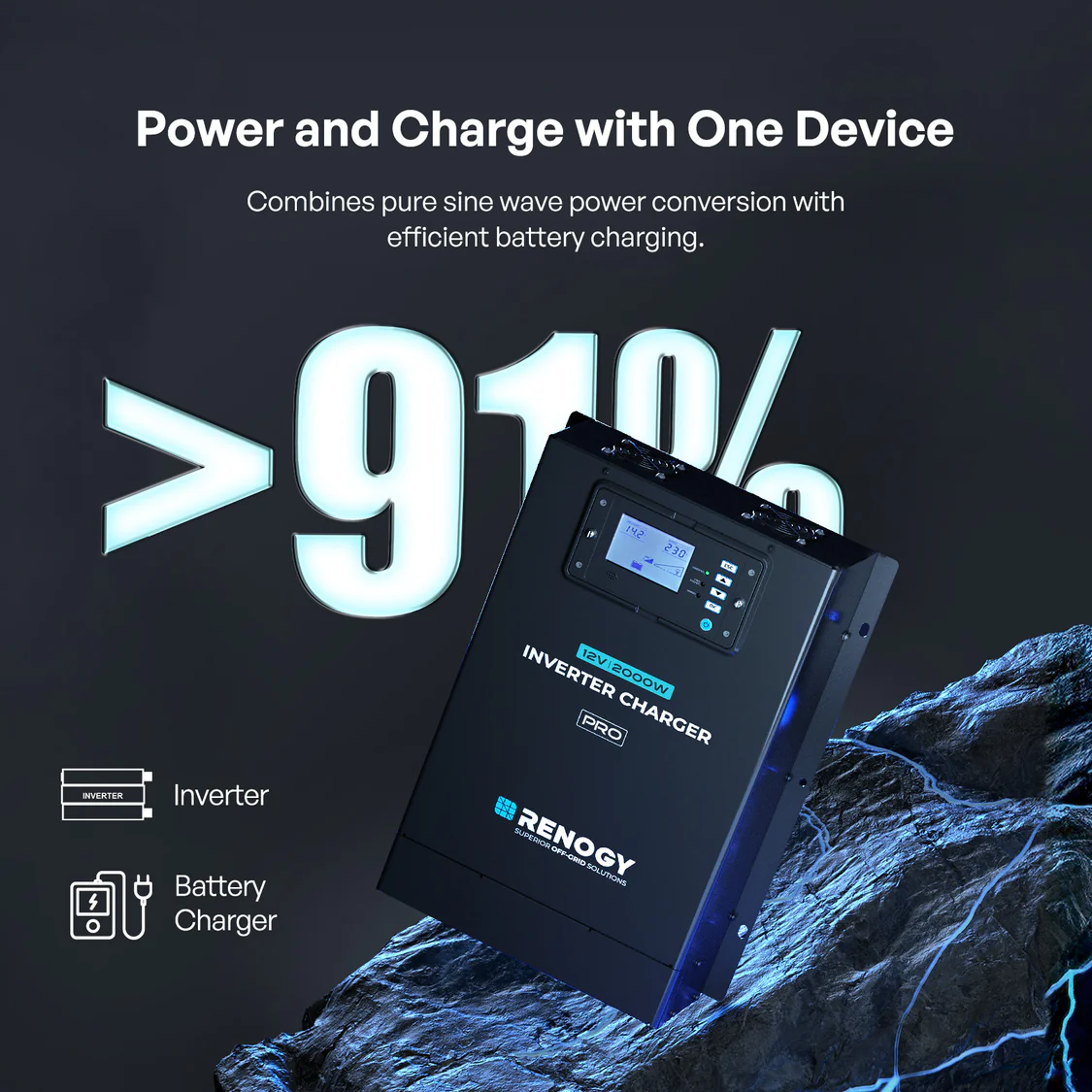

A comprehensive charging and power solution
Enjoy hassle-free battery charging and AC power conversion in a single device.

A reliable backup power supply you can count on
Keep your home powered even during power outages, without worrying about your family’s safety and comfort.

Stay safe with the built-in RCD protection
It immediately detects leaks, automatically cuts off the power, and restores it simply by flipping a switch.

Ensure adequate ventilation
To ensure safe and efficient operation of the device, maintain the required clearance around it.

Specifications:

Continuous power: 2000 W

Peak power: 4000 W

AC output voltage range: 230 V AC

Output frequency (nominal): 50/60 Hz ± 0.1 Hz, default 50 Hz

Output waveform: Pure sine wave

Efficiency: ＞91% peak

THD: ＜4%

DC input voltage: 12 V DC

DC input voltage range: 10.5–15.5 V DC

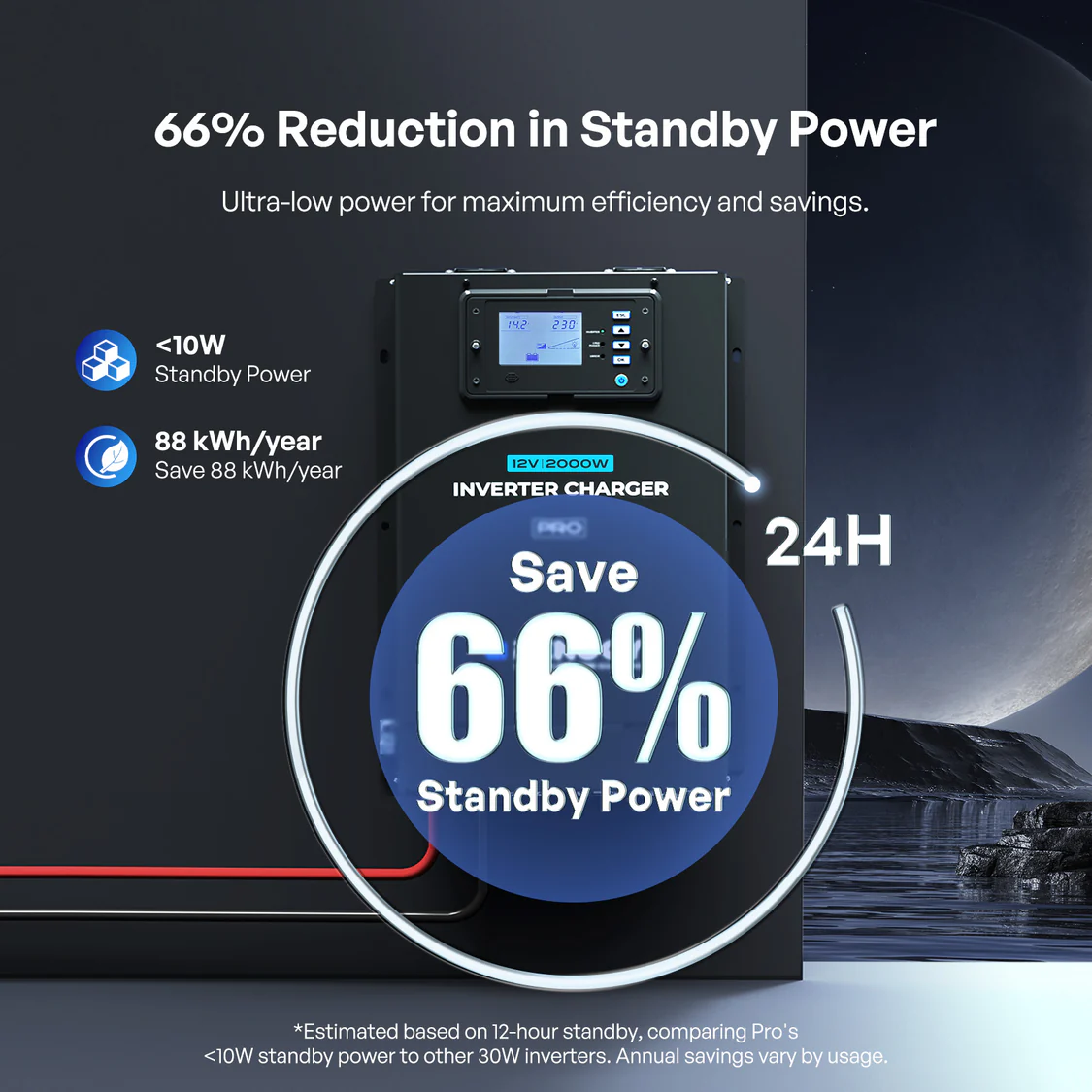

No-load power consumption: <10 W
Charger specifications

Output current: 5–120 A, adjustable in 5 A increments

Optimal efficiency: >85% peak

Nominal input voltage: 187–265 V DC

Input frequency range: 40 Hz–70 Hz

General and Transfer Switch Specifications

Transfer time: Max. 20 ms

Transfer rating: 16A automatic transfer switch

Battery types: GEL, AGM, SLA, FLD, CAL, LI, USER

Noise: <55 dB

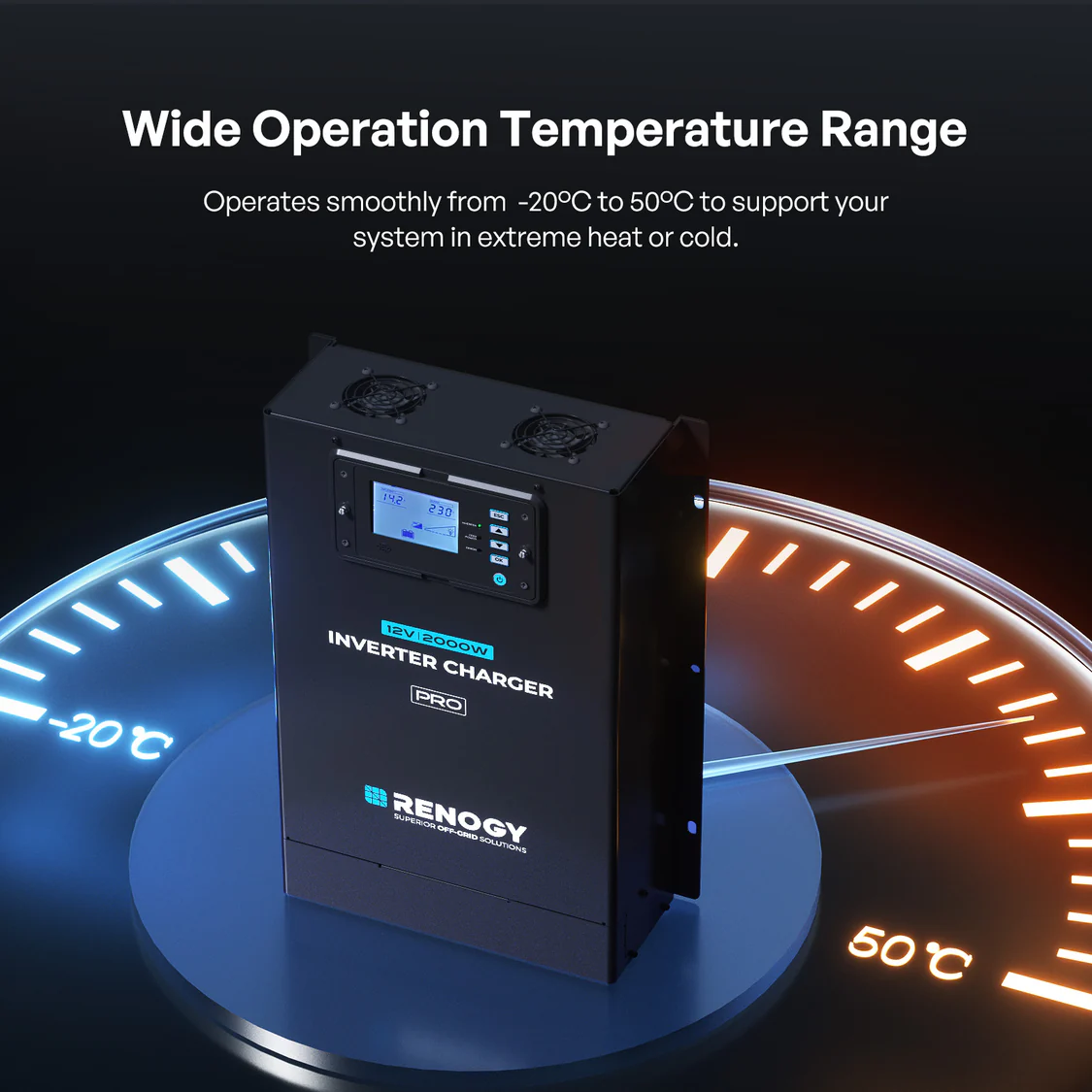

Operating temperature: -20–50°C / -4–122°F (Output power decreases at 86°F / 30°C or higher)

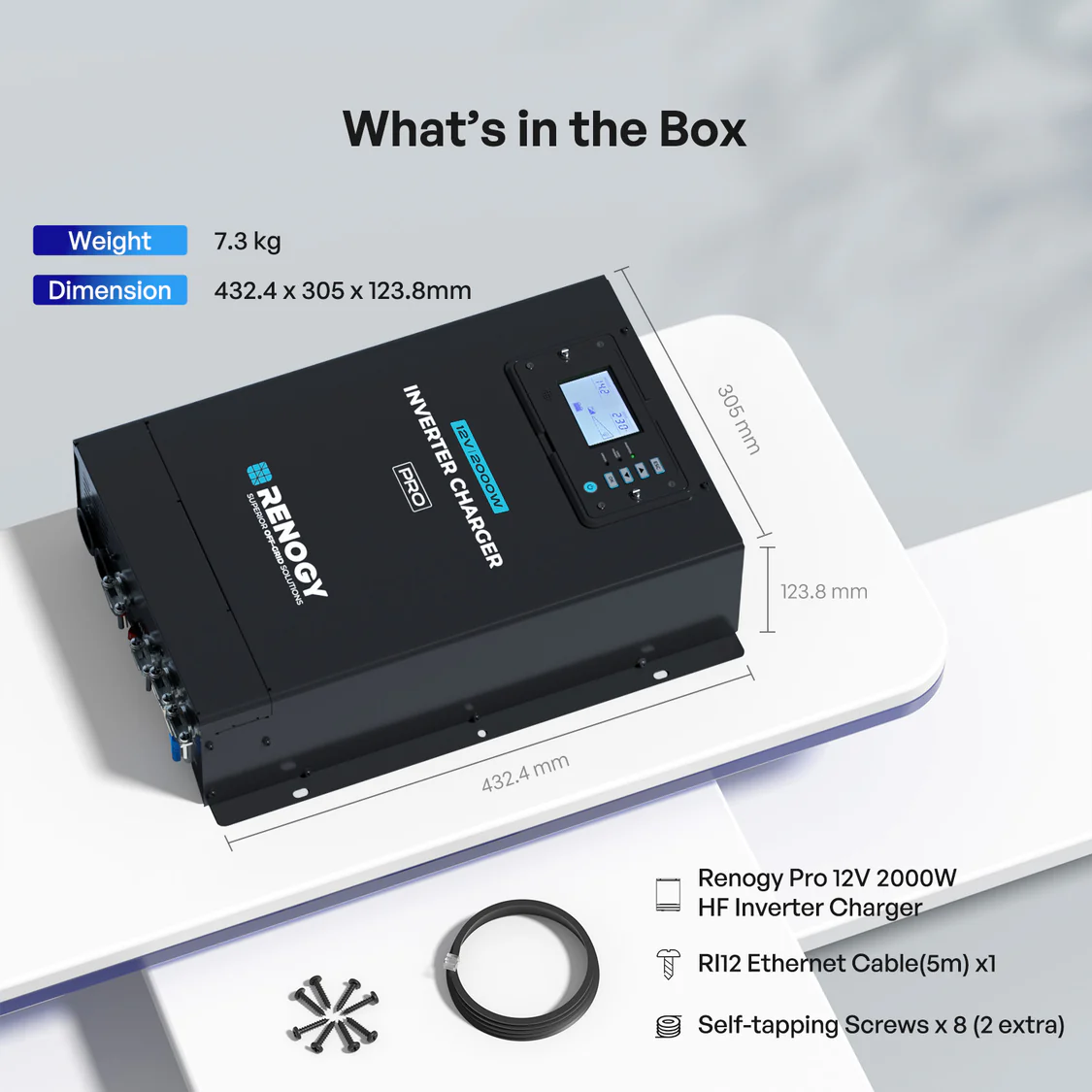

Dimensions: 17.02 x 12.01 x 4.87 inches / 432.4 x 305 x 123.8 mm

Storage temperature: -30–70°C / -22–158°F

Weight: 17.4 lbs / 7.9 kg

Humidity: 0%–95%

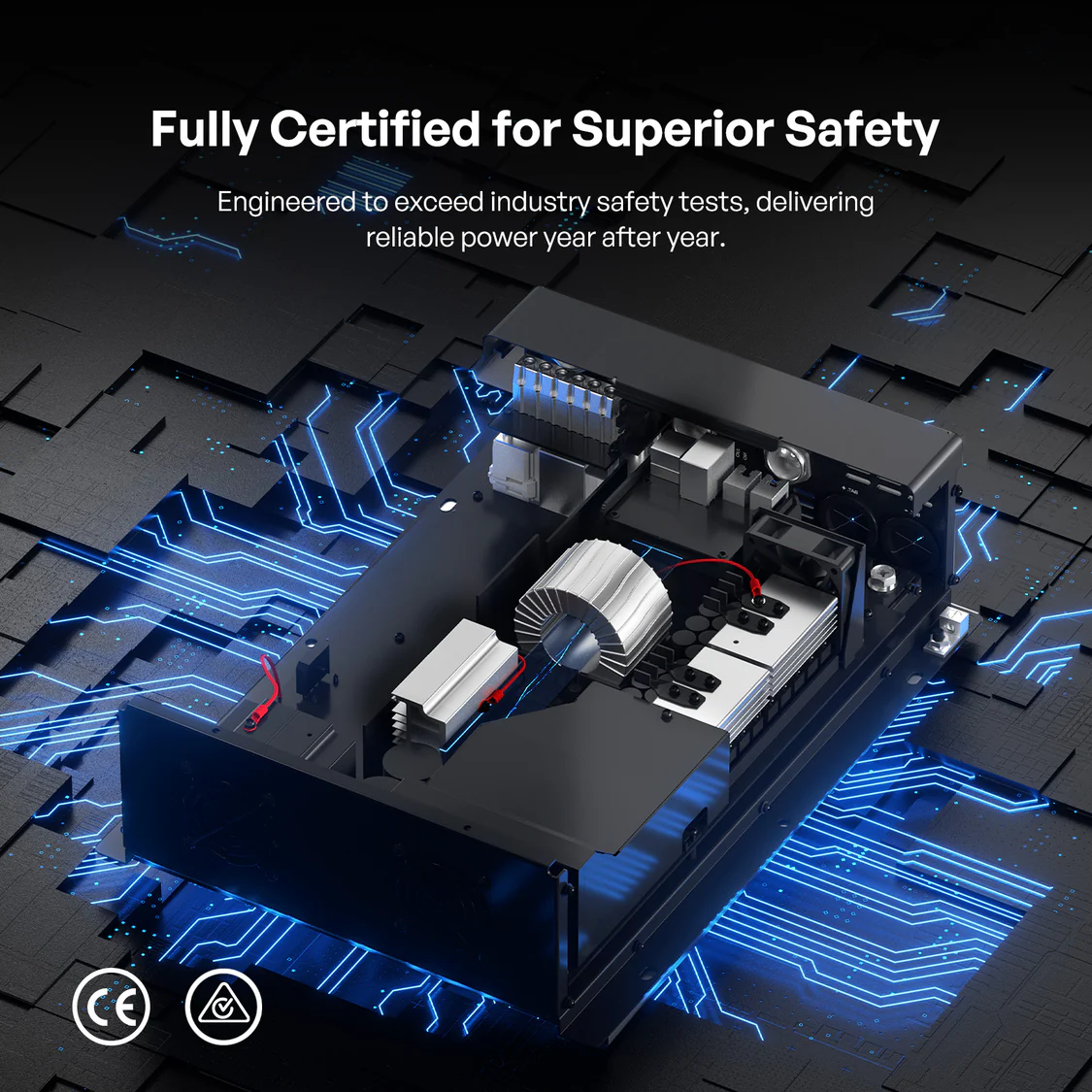

Warranty and certifications

Inverters: 3 years

Accessories: 3 years

EMC: “EN IEC 61000-6-1, EN IEC 61000-6-3, BS EN IEC 61000-6-1, BS EN IEC 61000-6-3”

Safety: “EN 62477-1, EN 60335-1, EN 60335-2-29, BS EN IEC 62477-1, BS EN 60335-1, BS EN IEC 60335-2-29”
